Amplifiers
The Foundation of Exceptional Sound
Peerless audio modules direct to you
PEERLESS PRO FAMILIES OF POWER AMPLIFIER MODULES
For over a decade, Peerless has been driving innovation and working with the most respected names in the pro industry. We bring that extensive experience and our system design mindset to our amplifier modules.
Peerless’s professional power amplification modules are road proven by the industry.
Our amplifier modules have the reliability and flexibility to enable your teams to design class leading products that stand out with the performance, features, and competitiveness to win in the market.
Our LC range are cost optimized solutions with maximum watt per dollar. The LCPF range integrates more features required for higher power applications.
| <1000 Watts | >1000 Watts | >2000 Watts | |
|---|---|---|---|
| Analog protection | LC600 | LCPF1200 | |
| I2C Control /FW Protection | LC1000, LCPF1204 | LCPF2000 | |
| Power Factor Correction | LCPF1200, LCPF1204 | LCPF2000 | |
| Auto Switch Universal Power | LC600 | LC1000 |
LC600
LC1000

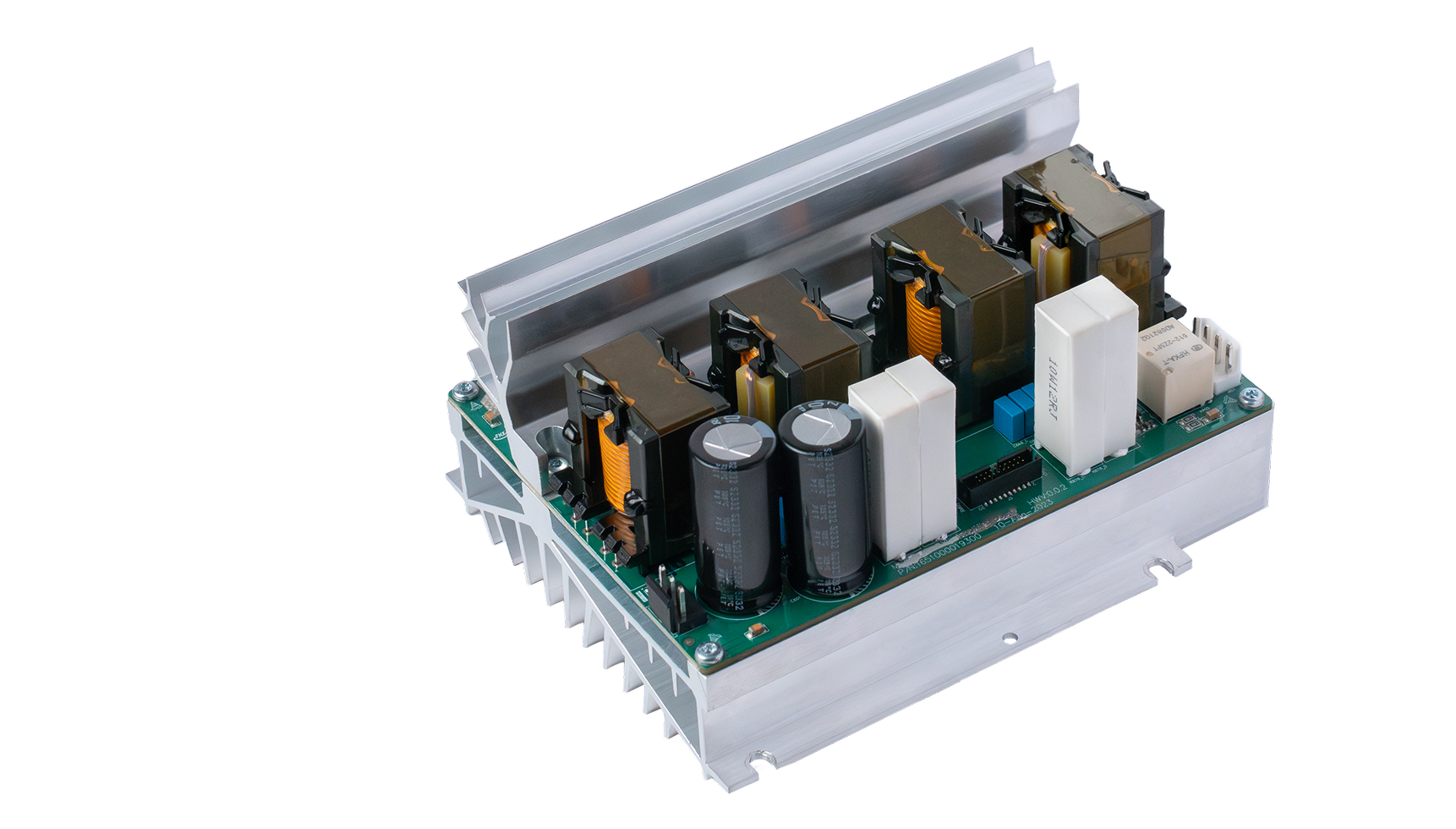

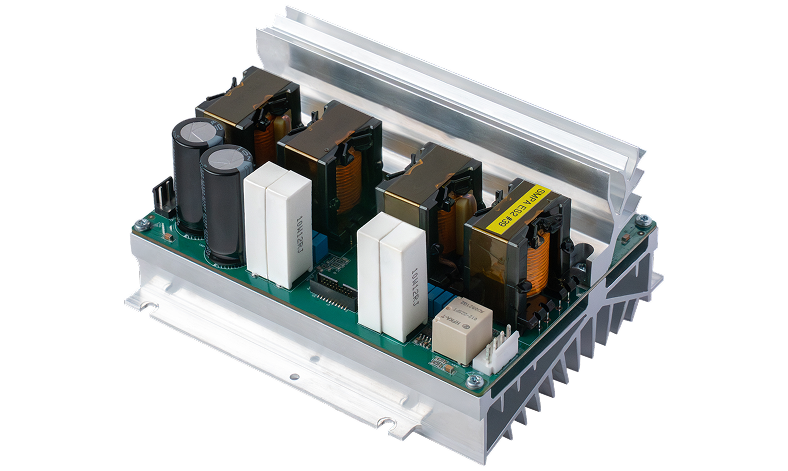

LC Amplifier Modules
POWER RANGE
600W TO 1200W
POWER SUPPLY
AUTO SWITCHING UNIVERSAL POWER
CONFIGURATIONS
FLEXIBLE 1-2 CHANNELS
The LC modules offer high voltage rails (160V on LC1000, 80V on LC600) with advanced onboard control, monitoring and protection to ensure reliability under all conditions.
Automatic mains range switching allows universal power input (90-132Vac and 180-265Vac).
LC features a pair of single ended channels which can be bridged.
The latest models use GAN devices in both PSU and amp stages to reduce material use in filter design, and increase power efficiency.
LCPF2000
LCPF1200

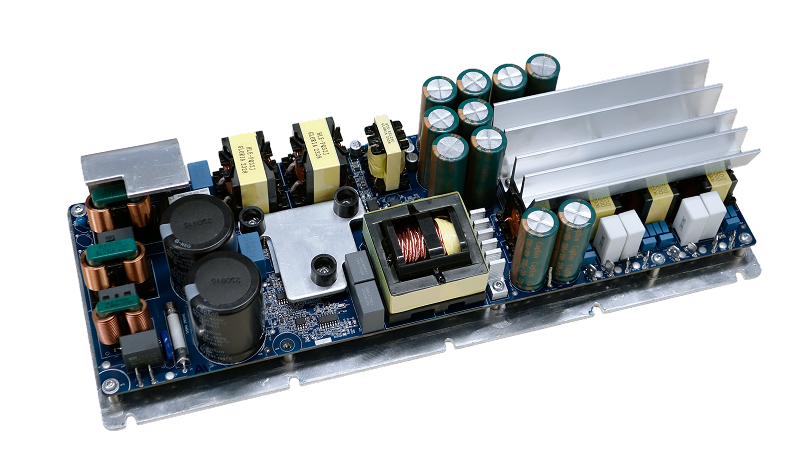

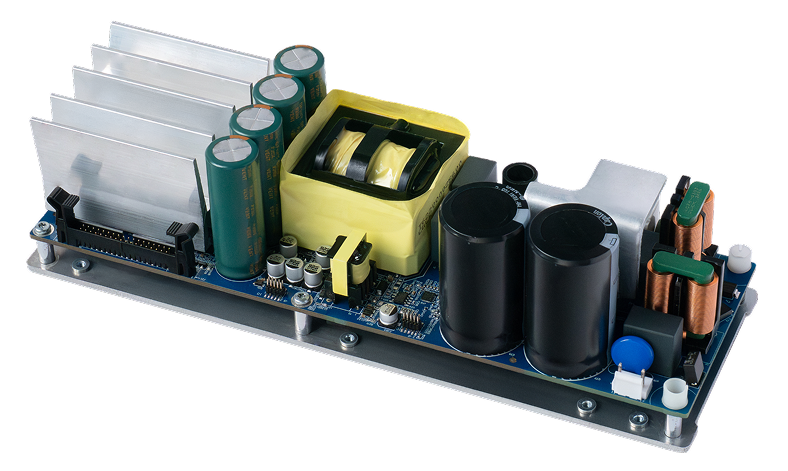

LCPF Modules
POWER RANGE
1200W to 2000W
POWER SUPPLY
RESONANT LLC – ACTIVE PFC
CONFIGURATIONS
FLEXIBLE 2 – 4 CHANNELS
The LCPF modules offer high voltage rails (160V on LCPF2000, 120V on LCPF1202) with advanced onboard control, monitoring and protection to ensure reliability under all conditions.
Active PFC allows consistent performance under a wide mains voltage range from 85V to 265V.
LCPF features four single ended channels which can be bridged in pairs, allowing the full power to be used across one, two three or four outputs. The latest models use GAN devices in both PSU and amp stages to reduce material use in filter design, and increase power efficiency.
Get pricing
2U Rack amp

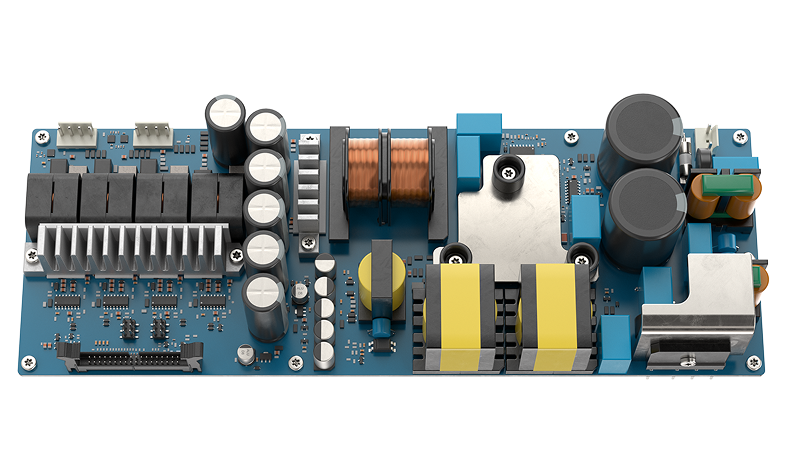

Rack AMP Module
POWER RANGE
600W to 2000W
POWER SUPPLY
RESONANT LLC – ACTIVE PFC
CONFIGURATIONS
FLEXIBLE 2 – 8 CHANNELS
Our modular PSU and amp power stages allow the design of rack mount amplifiers with a high degree of flexibility.
All modules are designed to fit in 1U or 2U heights either full or half width.
Active PFC allows consistent performance under a wide mains voltage range from 85V to 265V with 420v fault tolerant operation.
By using Can-Bus or I2C between modules allows for control, monitoring and protection of every aspect of the signal from primary side of the PSUs to output devices on the amp boards.
Our power sharing architecture allows flexible configurations of PSU and output amplification channels. GAN devices are used in both PSU and amp modules to reduce material use in filter design, and increase power efficiency.
